CUT 50 INVERTER PLASMA CUTTER Cutting Machine NON-TOUCH PILOT ARC 50A WARRANTY
HVC-50 Inverter Plasma Cutting Machine - High-Frequency, High-Precision Cutter. The HVC-50 Plasma Cutter utilizes advanced inverter technology, converting 50Hz/60Hz input to a high-frequency output of over 100kHz using IGBT and PWM technology. This process significantly reduces the size and weight of the main transformer, improving efficiency by 30% while delivering stable and powerful DC welding current. Equipped with a high-frequency pilot arc system, this cutter ensures effortless arc starting, even on painted, rusty, or uneven surfaces.
It also features pre-flow gas control and post-flow gas delay, protecting both the workpiece and the torch tip. Stable & Reliable Performance - Consistent cutting power with precise control. Lightweight & Portable - Thanks to advanced inverter technology. Energy-Saving & Low Noise - High efficiency with reduced power consumption.
High Cutting Speed - Clean cuts with minimal slag. Smooth Cut Finish - Reduces or eliminates the need for post-cut polishing. Versatile Cutting - Suitable for stainless steel, alloy steel, mild steel, copper, and other non-ferrous metals. Technology: IGBT Inverter with PWM.

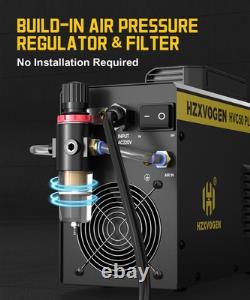

Air Pressure Required: 60-65 psi (with air compressor). Cutting Method: High-frequency pilot arc. Applications: Sheet metal, repair shops, automotive, DIY, fabrication.

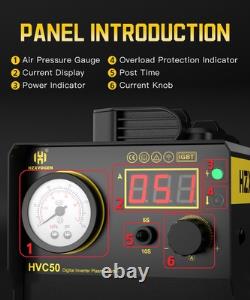

Turn the power switch OFF before plugging in. Connect the air compressor to the air regulator/filter.Attach the ground clamp to a clean metal surface on the workpiece. Switch ON the power; cooling fan activates and LED display lights up. Adjust air pressure to 60-65 psi. Set the desired current using the control knob. Position the torch tip on the edge or a pilot hole for thick materials.
Press the torch trigger to begin cutting. 1 × Plasma Torch (3.9m). 1 × Ground Clamp (2m).
Compact yet powerful - ideal for workshops, DIY, and professional metal fabrication. Clean, smooth cuts on various metals with minimal clean-up. Reliable start every time with high-frequency pilot arc. Energy-efficient, quiet, and easy to transport.
