100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New


100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New
100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New
100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New
100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New
100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New

100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New   100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New

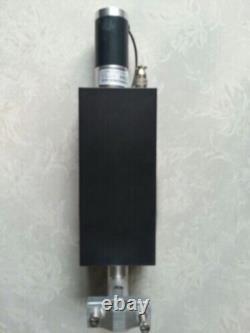

100mm Z-axis Torch Holder Lifter for CNC Plasma/Flame Cutting Machine New. Portable/desktop light duty CNC flame/plasma cutting machine. This flame/plasma cutting machine Z-axis torch lifter is driven by DC gear motor to lift the torch up & down. The most important part of the device, which is to keep the machine's cutting accuracy and to support plasma arc positioning function, is equipped with NPN ximity switches. This lifter's machenical movement part is made of Taiwan TBI ballscrew, standard linear shaft(SFC) & linear slider on the ends; torch clamper/holder is made of bearing steel, and fasterned by linear sliders, which is to ensure the lifter movement's stability & verticality.

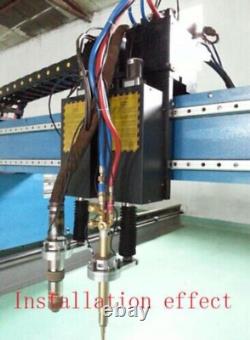

Convenient to install, work simple, imving the work efficiency. 1 foot --D +; (motor positive). 2 feet --D -; (motor negative). 3 feet --Zero; (positioning normally open output).

4 feet --COM; (positioning normally open output). Note: Built-in limit (reverse diode).

Lift inside a plasma arc positioning. Aluminum body, the upper and lower aluminum sheet thickness of 8mm, forming a cessing center. Weight: about 1.7 kg.

Dimensions: length 320 W 80 H 60. Mounting Hole Size Length: center distance between two holes 40mm. 1 x Set of CNC Cutting Torch Holder.

Please list your special requests color, packages, etc. Sincerely hope you do not leave us any negative or neutral feedback. Communication is very important, we believe we can resolve all the problem with each other. Welcome to visit our new store! We are a leading wholesaler and distributor of Tools & Workshop Equipment, Home Improvement, Kitchen, Dining & Bar Supplies, Auto Parts & Accessories etc.

We will give you the best advise. We welcome to answer any questions you have.
